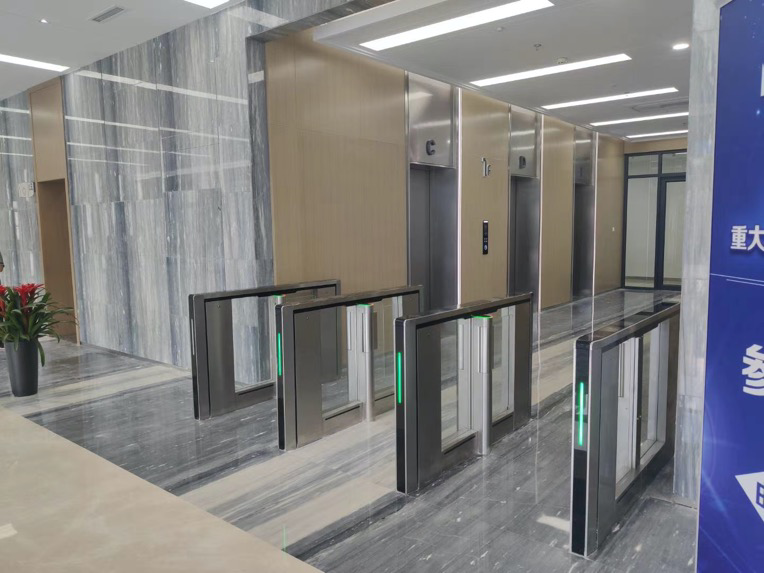

Evolve UK - PG600 Speed Lane Gate
Evolve UK - PG600 Speed Lane Gate Series is of a stylish and modern design, characteristic and simple installation with a wide application scope. The latest high tech drive mechanisms are used in this product. The entrance is controlled by multi-group sensors granted access through transparent gated arms. The authorised passage will be allowed, while the unauthorised passage will be instantaneously prohibited.
Evolve UK - PG600 Speed Lane Gate is a double leaf obstacle gate with a 600, 900, 1120mm walkways up to 1500mm high glass.
It provides safe, high speed, bi - directional pedestrian throughput, with an elegant and sophisticated look, essential for today ’s corporate environment.
DATA SHEET DESCRIPTION STANDARD FEATURES
1. Cabinet frame: Steel frame with RoHS anti -corrosion zinc plating treatment.
2. Cabinet outer: Brushed AISI 304L stainless steel, 220g.
3. Detection photocells: 16 transmit reflect cells, 8 high level and 8 low level.
4. Main column: Containing the DC motor and gearbox, a geared electromagnetic brake for locking the obstacles in the event of forced entry.
5. Obstacle: Clear plexiglass, 900mm high, 10mm thick.
6. Open Commands: Normally open volt free contacts, closing for not more than 1 second.
7. Hold open: Normally open volt free contacts, closing for more than 3 second.
8. Fire Input: Normally open volt free contacts, closing for more than 3 second.
9. Outputs: Three transistor outputs, two for passage complete or counters and one for fraud alarms.
10. Output: RS232 protocol.
11. Status and function pictograms: Indicating fraud, lane and passage status to the user.
12. Side access panel: Housing, TD controller, PSU and isolation switch.
13. Side walls: Clear 10 mm toughened glass.
