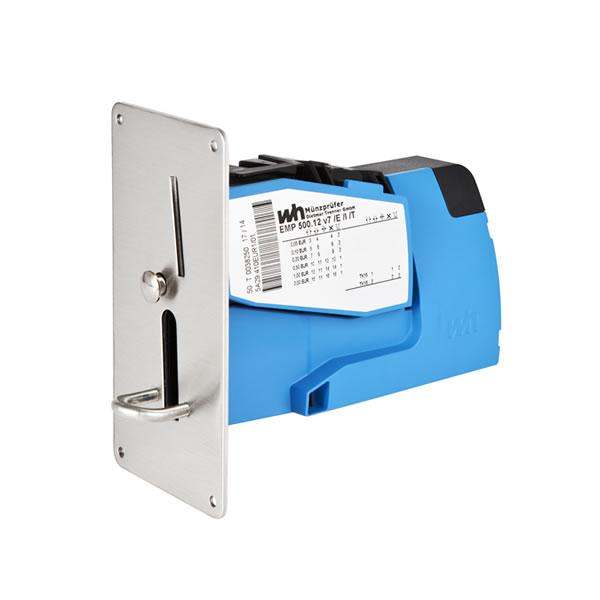

EMP 500 COIN MECH UK - Evolve UK

EMP 500 COIN MECH UK - Evolve UK has been designed especially for coin-operated machines where mechanical coin selectors have been fitted traditionally. The EMP 500 COIN MECH UK - Evolve UK with its innovative design sets a new standard offering a reliable alternative to mechanical coin selectors. A full range of front plates ensures that no alteration of the front plate cut-out is required on the machine. The electrical switching outputs of the EMP 500 COIN MECH UK - Evolve UK v7 are simply connected to the micro switch or optocoupler inputs of the existing controller. The coin selector has a supply voltage of 9 to 30 volts DC or 12 to 24 volts AC ensuring that only minimal technical amendments are required.

Versions

EMP 500 COIN MECH UK - Evolve UK coin selector with parallel interface

• EMP 500.00 v7 2 open collector outputs
• EMP 500.01 v7 2 solid state relay outputs
• EMP 500.04 v7 2 galvanised separated infra-red opto-coupler outputs, output transistors closed in standby
• EMP 500.12 v7 2 galvanised separated infra-red opto-coupler outputs, output transistors open in standby

EMP 500 COIN MECH UK - Evolve UK coin selector with totalizer function

(price can be set via DIP switches in 256 steps, 8 DIP switches for coin blocking)

• EMP 500.1206 v7 2 galvanised separated infra-red opto-coupler outputs, output transistors closed in standby
• EMP 500.0106 v7 2 solid state relay outputs

EMP 500 COIN MECH UK - Evolve UK coin selector with timer function

(time and price can be set via DIP switches in 16 steps, 8 DIP switches for coin blocking)

• EMP 500.1207 v7 2 galvanised separated infra-red opto-coupler outputs, output transistors closed in standby
• EMP 500.0107 v7 2 solid state relay outputs

EMP 500 COIN MECH UK - Evolve UK coin selector with serial interface

• EMP 500.13 v7 Multi Drop Bus protocol, ccTalk protocol and SCI interface
• (The hardware does not match the ccTalk or MDB specification.)

coin acceptance: 32 coin channels, max. 16 different coins or tokens

maximum coin size: diameter: 30.0 mm thickness: 3.3 mm

standard temperature range: +10°C to +70°C

supply voltage: 9 to 30 V DC or 12 to 24 V AC

interface: 2 parallel output lines, multi-pulse operation or serial

Options

/E extended temperature and humidity range temperature: -20°C to +70°C, humidity classification, relative humidity: annual average = 80%, max. 30 days per year 100%, remaining days max. 90%

/I inventory impulse

/T teach mode (2 channels activated)

EMP 500 COIN MECH UK - Evolve UK In stock and available for delivery in the UK 01264 334786, worldwide contact sales@evolvesecurityproducts.com
