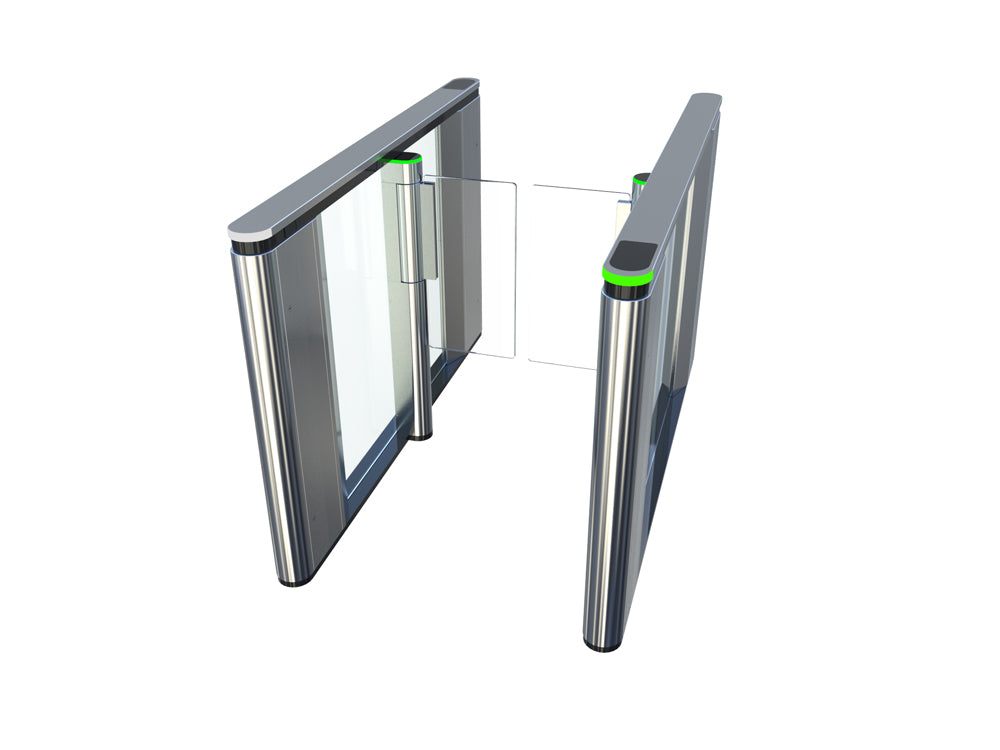

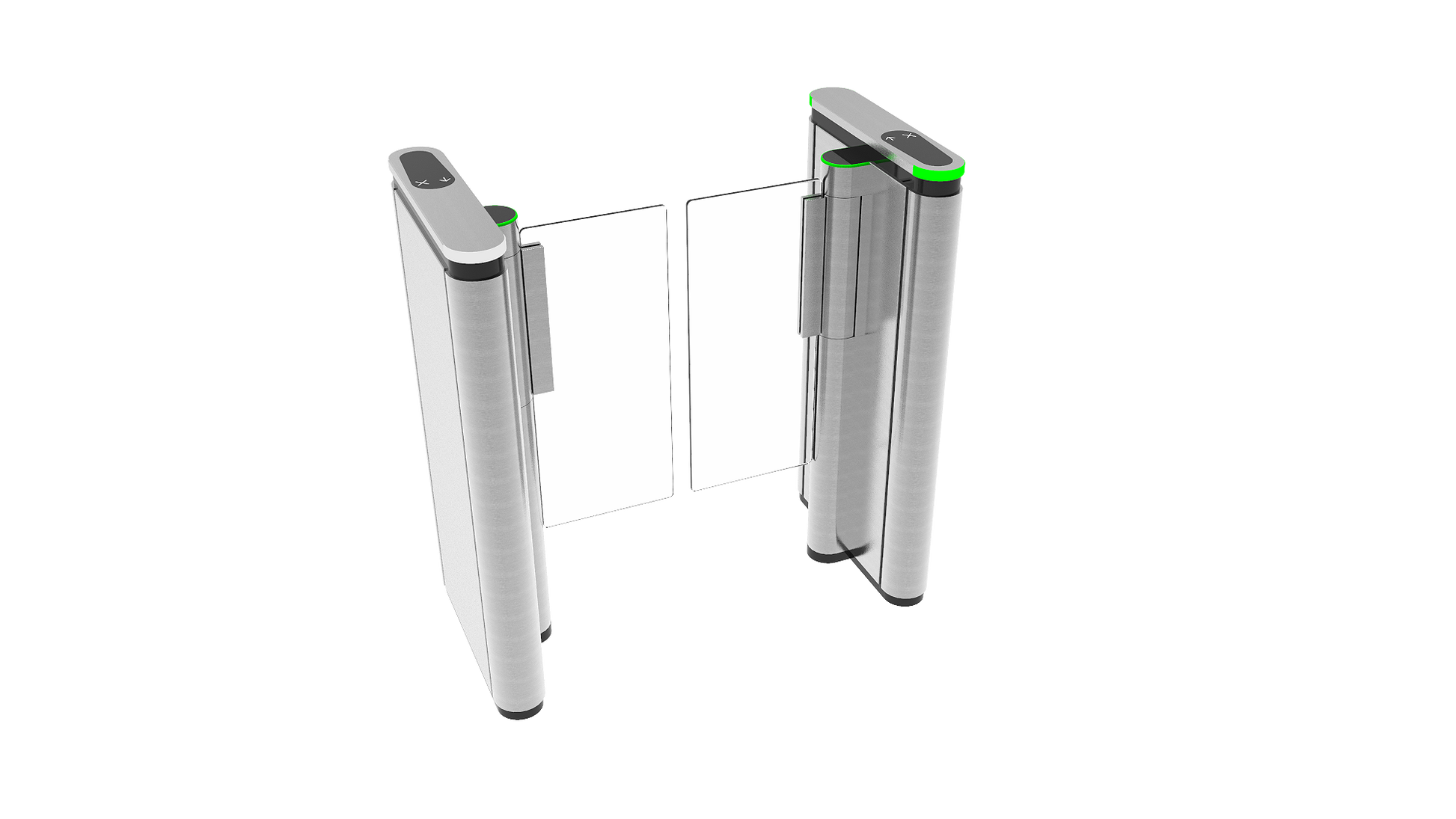

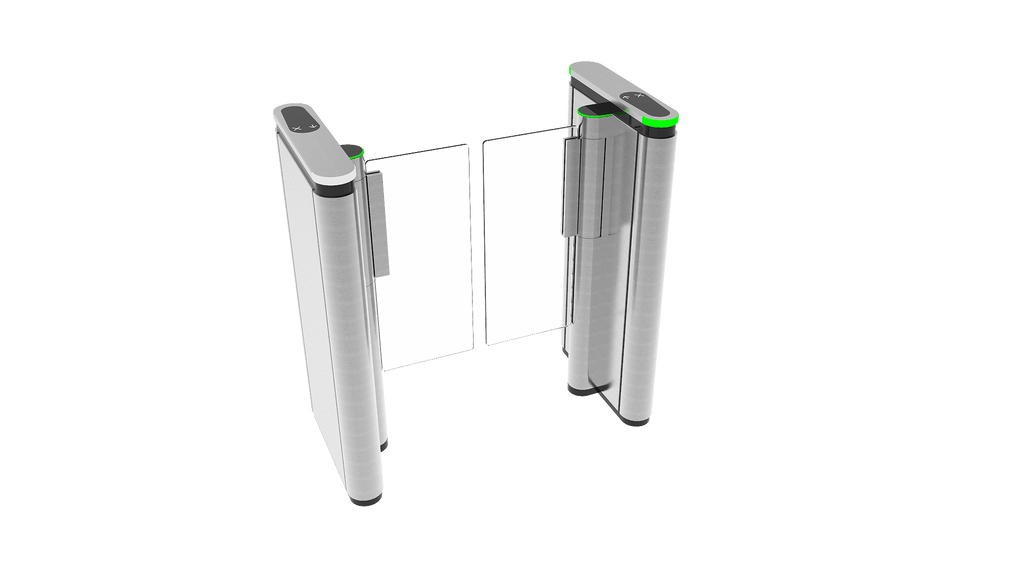

Evolve PG500 Compact Speed Gate – Space-Saving Pedestrian Entrance Control

The Evolve PG500 Compact Speed Gate is a premium glass pedestrian entrance control system designed specifically for small, tight and space-restricted entrance areas where conventional speed gates may be difficult to accommodate.

Combining a compact footprint with a modern stainless-steel cabinet, clear glass barriers and intelligent pedestrian detection, the PG500 Compact provides controlled bi-directional access without requiring the larger installation footprint associated with many traditional speed gate systems.

It is an ideal solution for restricted reception areas, narrow entrance zones, commercial refurbishments, office buildings and projects where available floor space is limited.

The PG500 Compact can integrate with a wide range of third-party access control systems, including card readers, RFID, QR code readers, biometric systems and facial recognition technologies.

Key Benefits

• Compact footprint for space-restricted installations

• Designed for small, tight and difficult-to-fit entrance areas

• Premium stainless-steel and glass construction

• Bi-directional pedestrian access

• Modern architectural appearance

• Intelligent pedestrian detection

• Integrated electromagnetic locking

• Supports third-party access control systems

• Volt-free access-control inputs

• Emergency/fire alarm input

• Passage-complete and alarm outputs

• Suitable for single or multi-lane installations

• Ideal for new-build and refurbishment projects

• Available with custom finishes and configurations

Designed for Small and Space-Restricted Areas

The PG500 Compact has been developed for projects where available floor space is one of the most important considerations.

Not every building has the space required for a conventional entrance-control installation. Reception areas can be narrow, existing buildings can have restrictive layouts and refurbishment projects may require entrance control to be installed within an existing footprint.

The PG500 Compact provides a practical solution by combining controlled pedestrian access with a space-conscious design.

It is particularly suitable for:

• Small reception areas

• Narrow building entrances

• Restricted floor-space environments

• Existing building refurbishments

• Commercial offices

• Corporate reception areas

• Financial institutions

• Government buildings

• Education facilities

• Healthcare environments

• Hotels

• Leisure and fitness facilities

• Residential developments

• High-value commercial premises

The Compact Choice for Modern Entrance Control

The PG500 Compact is designed for customers who require the appearance and functionality of a modern glass speed gate but have limited space available for installation.

Its compact design allows entrance control to be considered in locations where a larger conventional speed gate installation may not be practical.

This makes the PG500 Compact particularly useful during:

• New building design

• Office refurbishment

• Reception upgrades

• Security upgrades

• Building layout changes

• Access-control upgrades

• Space-constrained installations

Where floor space is limited, choosing a compact entrance-control system can help maintain a clean and professional entrance without unnecessarily reducing usable reception or circulation space.

Access Control Integration

The Evolve PG500 Compact is designed as an open integration platform, allowing it to connect with a wide range of third-party access control systems.

Typical integrations include:

• RFID card readers

• Proximity readers

• QR code readers

• Mobile credentials

• Biometric access control

• Facial recognition

• Visitor management systems

• Building access-control systems

• Turnstile and entrance-control management systems

Access-control commands are provided through volt-free contacts, allowing the PG500 Compact to interface with the wider building security system.

This makes the system suitable for both new installations and access-control upgrades.

Intelligent Pedestrian Detection

The PG500 Compact uses optical detection to monitor pedestrian movement through the passage.

The detection system helps the controller identify pedestrian movement and manage the operation of the glass barriers.

The system can monitor functions including:

• Entry

• Exit

• Passage completion

• Incorrect movement

• Potential unauthorised passage

• Barrier obstruction

The detection system works together with the gate controller to provide controlled and reliable pedestrian operation.

Controlled Security

The PG500 Compact provides controlled pedestrian access when connected to an appropriate access-control system.

The gate incorporates an electromagnetic locking system designed to secure the glass barriers when required.

It is suitable for environments where controlled access is required while maintaining a more open and architectural appearance than traditional turnstile systems.

Important: The overall security level of any entrance-control installation depends on the selected access-control system, site design, product configuration, installation and operational requirements.

For projects requiring a higher level of physical security or perimeter protection, Evolve can recommend alternative products from the wider entrance-control range.

Pedestrian Safety

The PG500 Compact is designed with pedestrian safety in mind.

Its optical detection system monitors the passage area during operation and assists the controller in identifying pedestrian movement and obstructions.

The system can also interface with building fire and emergency systems through the dedicated fire input.

Each installation should be assessed against the specific site requirements, risk assessment and applicable safety standards.

Space-Saving Installation

The primary advantage of the PG500 Compact is its space-conscious design.

It is particularly useful where the available installation area is restricted by:

• Walls

• Reception desks

• Lift lobbies

• Corridors

• Structural columns

• Existing entrance layouts

• Building services

• Limited circulation space

• Existing architectural features

Before specifying the PG500 Compact, Evolve recommends checking the available installation dimensions, required walkway width, pedestrian flow and access-control requirements.

Our technical team can assist distributors and system integrators with product selection and project configuration.

Standard Construction

Cabinet Frame

Steel frame with RoHS anti-corrosion zinc plating treatment.

Cabinet Exterior

Brushed AISI 304L stainless steel construction.

Glass Barrier

Clear plexiglass barriers designed to provide a modern and open architectural appearance.

Barrier height and configuration can be specified according to project requirements.

Drive System

DC motor and gearbox with geared electromagnetic braking system.

Detection

Optical pedestrian detection system for monitoring movement through the entrance.

Control Inputs

The PG500 Compact provides dedicated interfaces for connection to external access-control equipment.

Open Command

Normally open volt-free contact.

The access-control system provides the opening command to the gate controller.

Hold Open

Normally open volt-free contact.

The hold-open function can be used where required by the access-control configuration.

Fire Input

Dedicated fire/emergency input for connection to the building's emergency or fire-alarm system.

The final configuration should be confirmed during project specification.

Outputs

The controller provides outputs for external system integration.

Depending on configuration, outputs can provide information including:

• Passage complete

• Passage counting

• Alarm indication

• System status

Finishes

The standard PG500 Compact finish is brushed AISI 304L stainless steel.

For projects where appearance is particularly important, Evolve can provide alternative finishes and bespoke appearance options subject to specification.

Available options may include:

• PVD finishes

• Powder-coated finishes

• Custom colours

• Bespoke architectural finishes

• Project-specific finishes

Contact Evolve to discuss custom requirements.

Single or Multi-Lane Installations

The PG500 Compact can be used as a single-lane entrance-control solution or incorporated into a multi-lane installation where the available space permits.

It is particularly useful for projects where the entrance area must balance:

Security + Pedestrian Flow + Architectural Appearance + Available Space

Evolve can assist distributors, system integrators and approved installation partners with lane configuration and product selection.

Installation & Integration

The PG500 Compact is supplied for integration with the site's access-control system.

Evolve Security Products supports distributors, system integrators and approved installation partners with technical information, product selection and project support.

Available support can include:

• Technical product information

• CAD and dimensional information

• Pre-delivery inspection (PDI)

• Factory acceptance testing (FAT)

• Product training

• Access-control integration support

• Commissioning guidance

• Warranty support

UK Manufacturer & Global Supply

Evolve Security Products is a UK entrance-control manufacturer supplying pedestrian access-control systems to distributors, system integrators and approved installation partners.

The Evolve range is supplied for projects throughout the UK and internationally.

Selected products are available from UK stock, while bespoke configurations and finishes can be manufactured to project requirements.

Technical Specification

Why Choose the PG500 Compact?

The PG500 Compact is the right choice when space is limited but professional entrance control is still required.

It provides a combination of:

Compact Design
Designed for entrances where available floor space is restricted.

Modern Appearance
Stainless steel and clear glass create a clean architectural entrance.

Controlled Access
Integrates with the building's access-control system.

Flexible Integration
Compatible with a wide range of third-party access-control technologies.

Evolve Support
Technical support for distributors, integrators and approved installation partners.

Request PG500 Compact Technical Information

Planning an entrance-control installation where space is tight or difficult to work with?

The Evolve team can help determine whether the PG500 Compact is suitable for your available footprint, required walkway width, pedestrian flow and access-control system.

Request a Quote

Request Technical Information

Download PG500 Compact Datasheet

For project enquiries, provide the available installation dimensions, required walkway width, number of lanes and access-control system where known.
