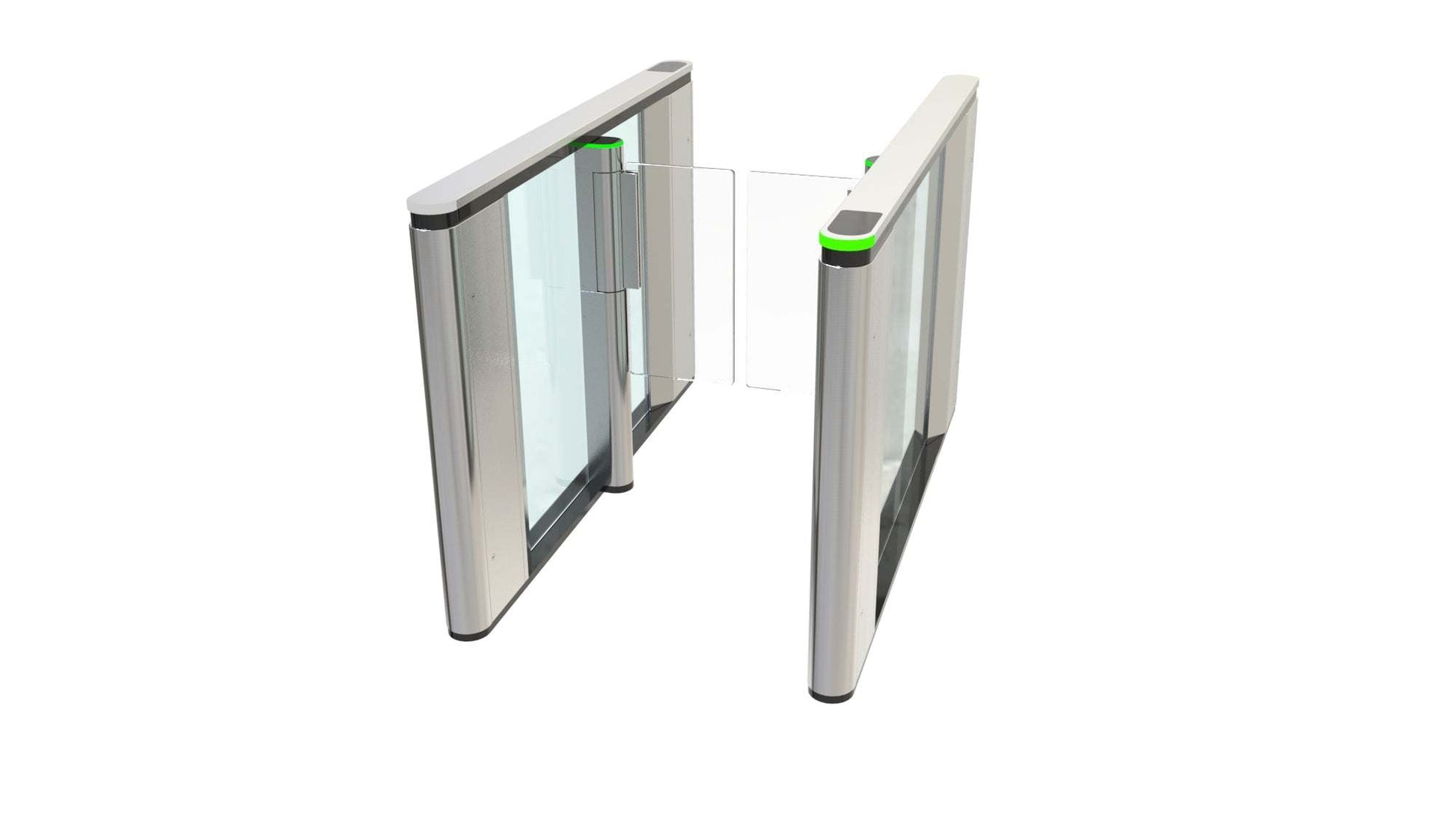

Evolve PG500 - Speed Lane Gate

The Evolve PG500 - Speed Lane Gate is a premium glass pedestrian entrance control system designed to provide fast, secure and reliable access for corporate offices, commercial buildings, reception areas and other controlled environments.

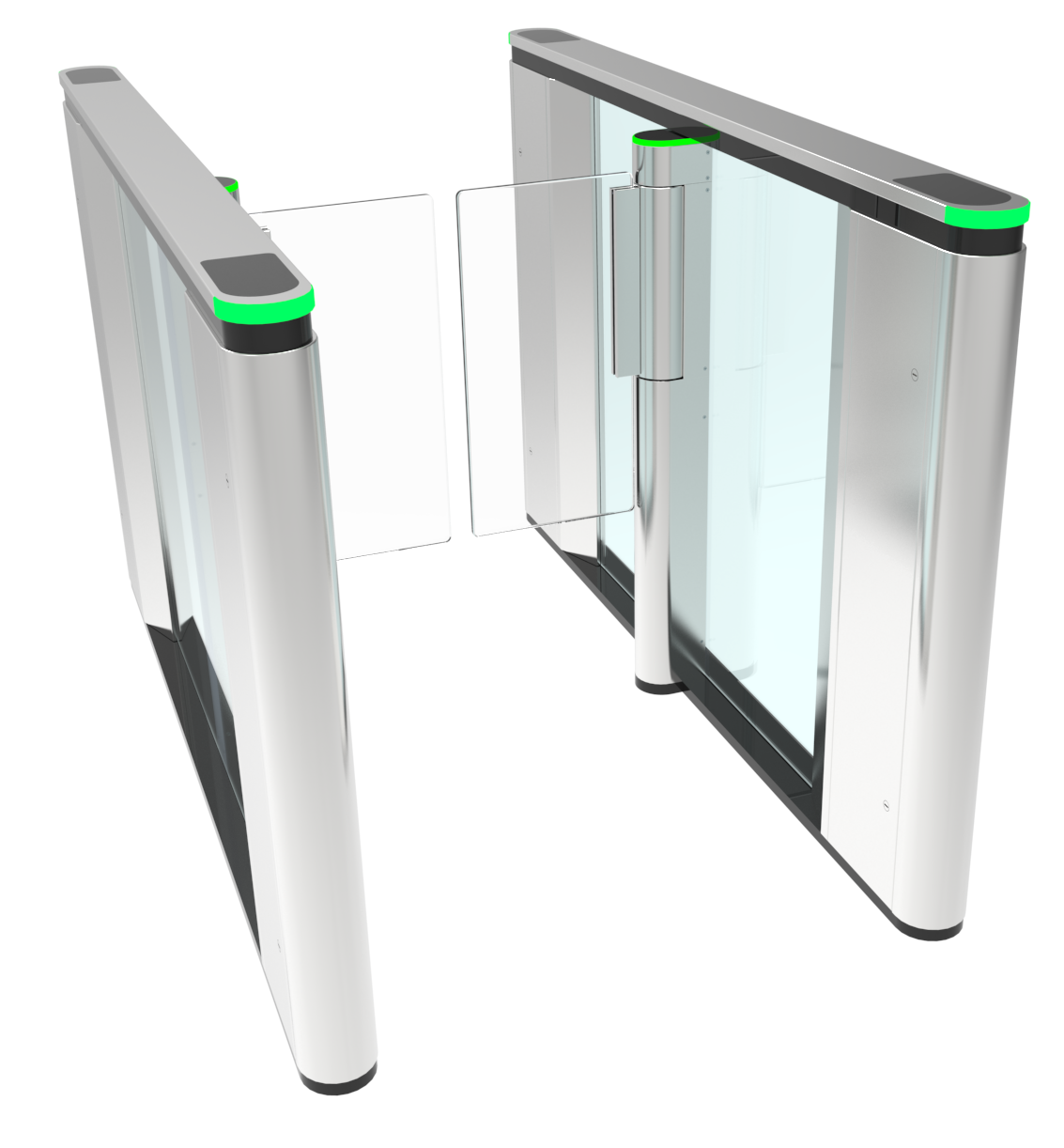

Combining a sophisticated stainless-steel cabinet with clear glass barriers and intelligent pedestrian detection, the PG500 provides controlled bi-directional access while maintaining high pedestrian throughput and a modern architectural appearance.

The Evolve PG500 - Speed Lane Gate can integrate with a wide range of third-party access control systems, including card readers, RFID, QR code readers, biometric systems and facial recognition technologies, making it suitable for new installations and access-control upgrades.

Key Benefits

• Premium stainless-steel and glass construction

• High-speed bi-directional pedestrian access

• Designed for medium-security entrance control

• 16 optical detection photocells

• 900 mm high clear plexiglass barriers as standard

• Integrated electromagnetic locking

• Supports third-party access control systems

• Volt-free access-control inputs

• Emergency/fire alarm input

• Passage-complete and alarm outputs

• Suitable for corporate and commercial environments

• Modern architectural design

• Available with custom finishes and configurations

• Suitable for single or multi-lane installations

Designed for Modern Entrance Control

The Evolve PG500 - Speed Lane Gate is designed for entrances where security, pedestrian flow and appearance are equally important.

Its compact cabinet design and clear glass barriers allow the gate to integrate naturally into modern reception areas while providing controlled access between public and secure areas.

The system is particularly suited to:

• Corporate headquarters

• Commercial offices

• Financial institutions

• Government buildings

• Reception areas

• Education facilities

• Healthcare environments

• Leisure and fitness facilities

• Transport facilities

• High-traffic commercial buildings

Access Control Integration

The Evolve PG500 - Speed Lane Gate is designed as an open integration platform and can be connected to a wide range of third-party access control systems.

Typical integrations include:

• RFID card readers

• Proximity readers

• QR code readers

• Mobile credentials

• Biometric access control

• Facial recognition

• Visitor management systems

• Turnstile and entrance-control management systems

Access-control commands are provided through volt-free contacts, allowing the PG500 to interface with the wider building security system.

Intelligent Pedestrian Detection

The PG500 incorporates multiple optical detection points to monitor pedestrian movement through the passage.

The standard configuration includes 16 transmit/receive photocells, positioned at different heights to improve detection of pedestrians moving through the gate.

This allows the system to monitor:

• Entry

• Exit

• Passage completion

• Incorrect movement

• Potential unauthorised passage

• Barrier obstruction

The detection system works with the gate controller to manage safe and controlled operation.

Security

The PG500 provides controlled pedestrian access when connected to an appropriate access control system.

The main column incorporates a geared electromagnetic brake which can lock the glass barriers in the event of forced entry.

The system is therefore suitable for entrances where controlled pedestrian movement is required without the physical containment associated with full-height turnstiles.

Important: The PG500 should be specified as part of a complete access-control system. The overall security level depends on the access-control system, site design, configuration and installation.

Safety

Pedestrian safety is a fundamental part of the PG500 design.

The optical detection system monitors the passage area during operation and helps the gate controller identify obstructions and pedestrian movement.

The system can also be connected to building fire and emergency systems through the dedicated fire input.

For every project, the final configuration should be assessed against the applicable site requirements, risk assessment and relevant standards.

Standard Construction

Cabinet Frame

Steel frame with RoHS anti-corrosion zinc plating treatment.

Cabinet Exterior

Brushed AISI 304L stainless steel construction.

Glass Barrier

Clear plexiglass barriers, 900 mm high and 10 mm thick as standard.

Alternative barrier heights and configurations may be available depending on project requirements.

Detection

16 transmit/receive photocells:

• 8 high-level detection cells

• 8 low-level detection cells

Drive System

DC motor and gearbox with geared electromagnetic braking system.

Control Inputs

The PG500 provides dedicated control interfaces for integration with external access-control equipment.

Open Command

Normally open volt-free contact.

Contact closure of no more than 1 second activates the opening command.

Hold Open

Normally open volt-free contact.

Contact closure for more than 3 seconds activates the hold-open function.

Fire Input

Normally open volt-free contact.

Contact closure for more than 3 seconds activates the configured fire/emergency operation.

Outputs

The controller provides transistor outputs for external system integration.

Outputs can be configured for functions including:

• Passage complete

• Passage counting

• Fraud/alarm indication

Finishes

The standard Evolve PG500 - Speed Lane Gate finish is brushed AISI 304L stainless steel.

Evolve can also provide alternative finishes and bespoke appearance options for suitable projects.

Options may include:

• PVD finishes

• Powder-coated finishes

• Custom colours

• Bespoke architectural finishes

• Branded or project-specific finishes

Please contact Evolve to discuss custom requirements.

Multi-Lane Installations

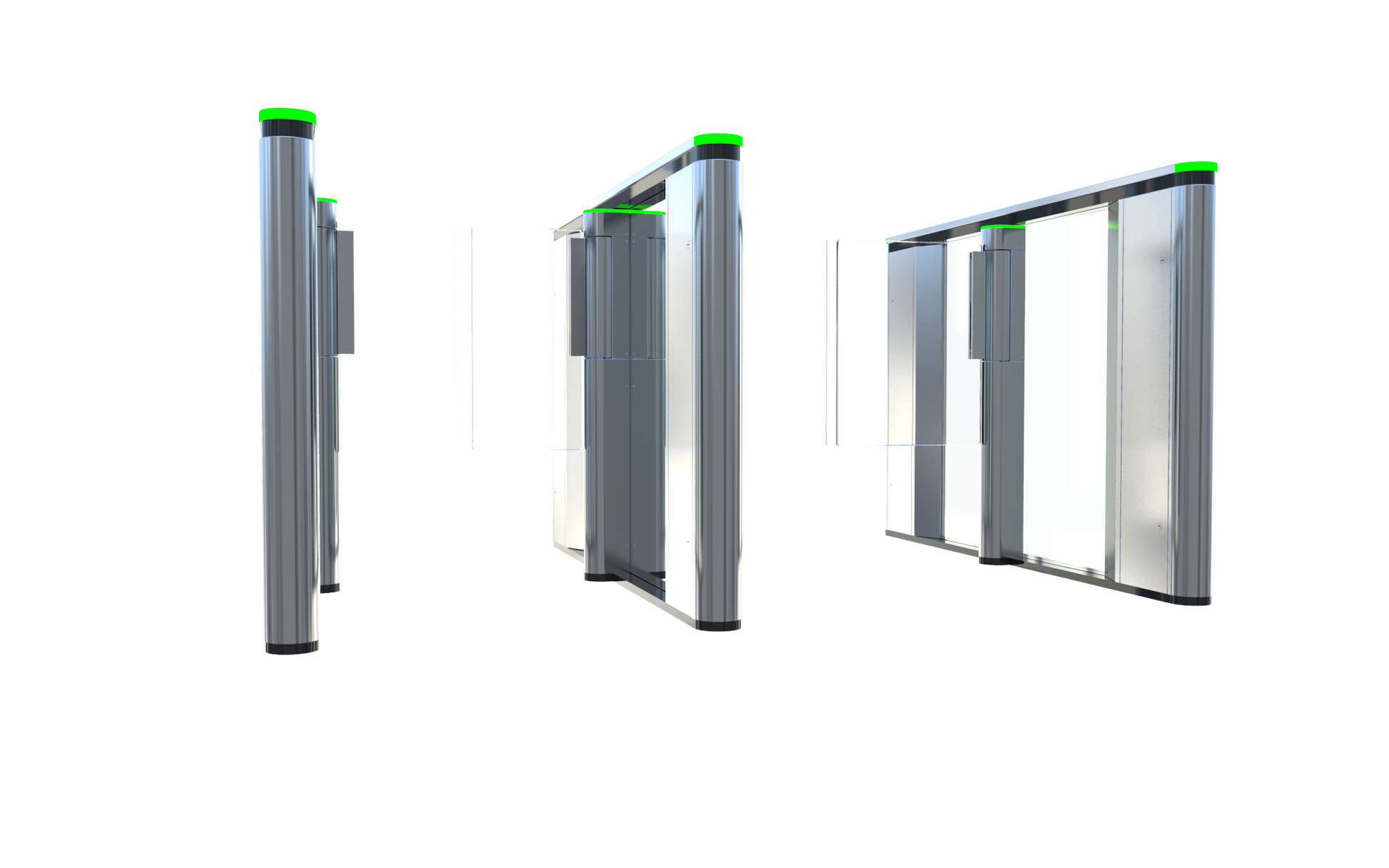

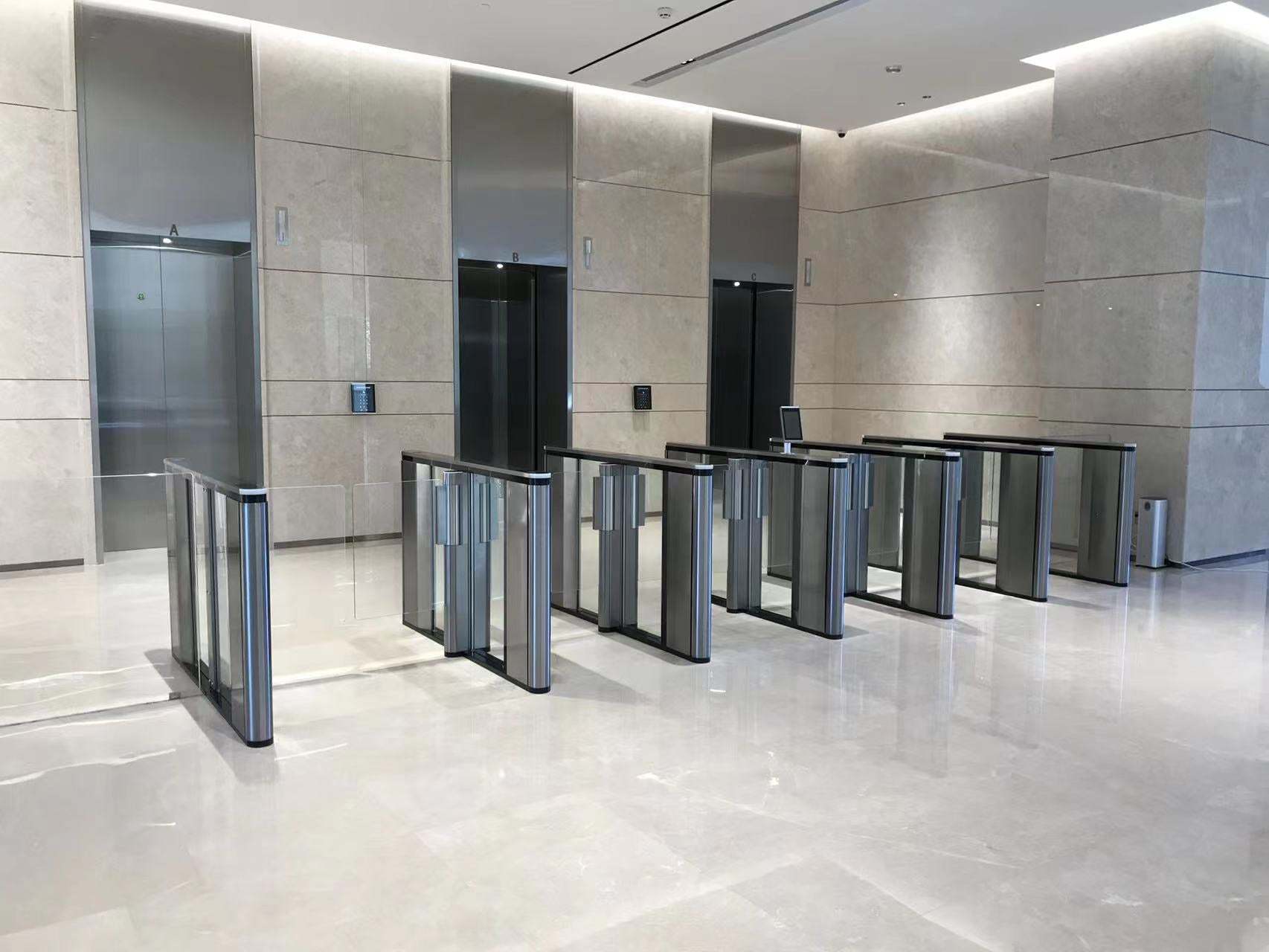

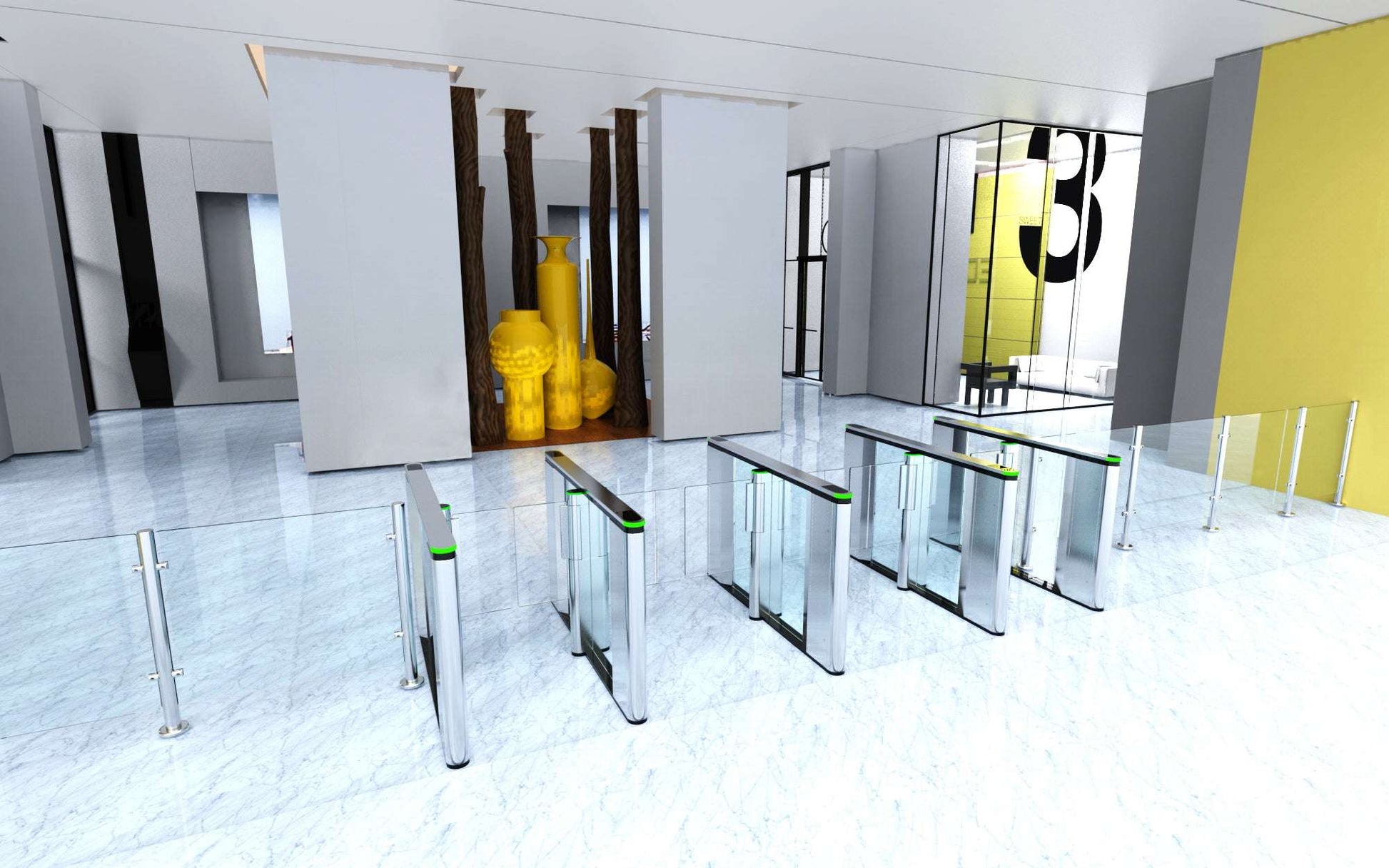

The PG500 can be installed as part of a multi-lane entrance-control system.

Multi-lane configurations are particularly suitable for:

• Corporate headquarters

• Large commercial offices

• Government buildings

• Transport facilities

• Education campuses

• High-traffic reception areas

Evolve can assist distributors, integrators and approved installation partners with product selection and project configuration.

Installation & Integration

The PG500 is supplied for integration with the site's access-control system.

Evolve Security Products supports distributors, system integrators and approved installation partners with technical information, product selection and project support.

Available support can include:

• Technical product information

• CAD and dimensional information

• Pre-delivery inspection (PDI)

• Factory acceptance testing (FAT)

• Product training

• Access-control integration support

• Commissioning guidance

• Warranty support

UK Manufacturer & Global Supply

Evolve Security Products is a UK entrance-control manufacturer supplying pedestrian access-control systems to distributors, system integrators and approved installation partners.

The Evolve range is supplied for projects in the UK and internationally.

Selected products are available from UK stock, while bespoke configurations and finishes can be manufactured to project requirements.

Technical Specification

Request PG500 Technical Information

Planning a new entrance-control installation?

Evolve can provide technical information, product guidance and quotation support for the PG500.

Request a Quote

Request Technical Information

Download PG500 Datasheet

For multi-lane projects, contact Evolve with your required lane quantity, walkway width, access-control system and site requirements.
