Evolve Security Products

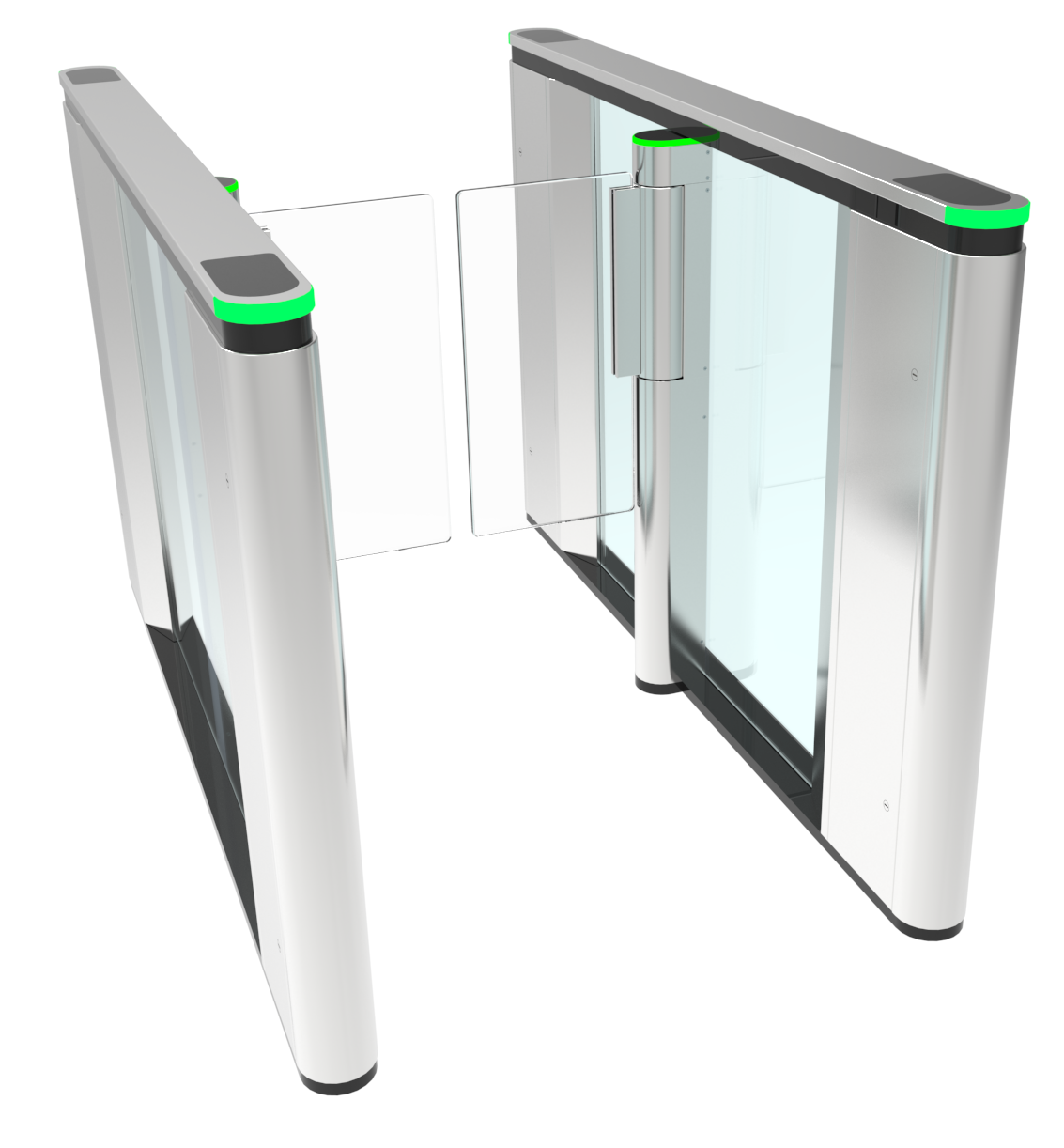

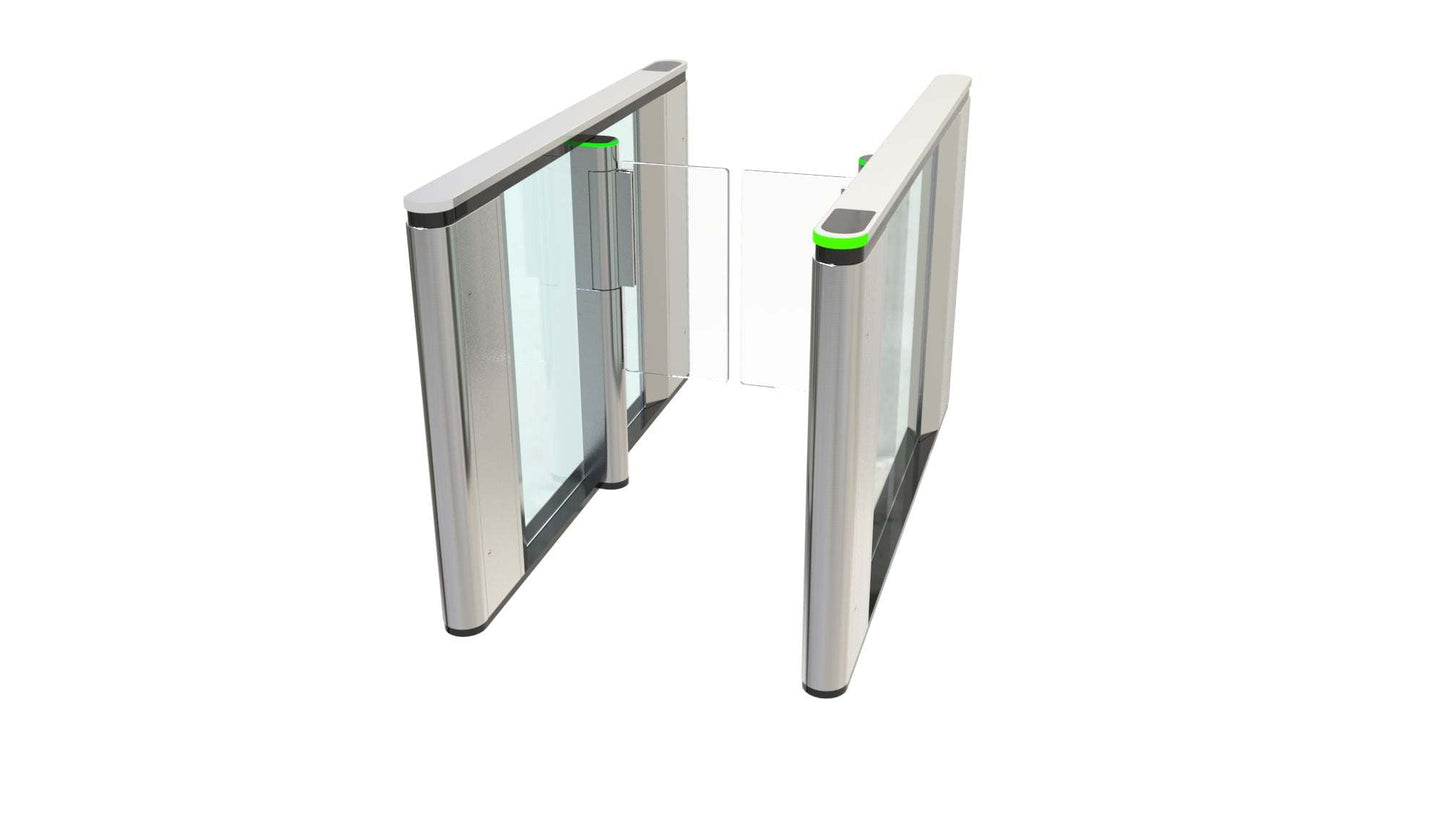

Evolve PG500 Paddle Gate

Evolve PG500 Paddle Gate

Regular price $0.00
Regular price Sale price $0.00
Sale Sold out
Shipping calculated at checkout.
FOR MORE PRICES CONTACT 01264 334786

The PG500 range of paddle leafed gates provide safe, high speed, bi-directional pedestrian throughput, with an elegant and sophisticated look, essential for today’s corporate environment.

When installed in conjunction with any access control system paddle gates provide a low to medium level of entrance security.

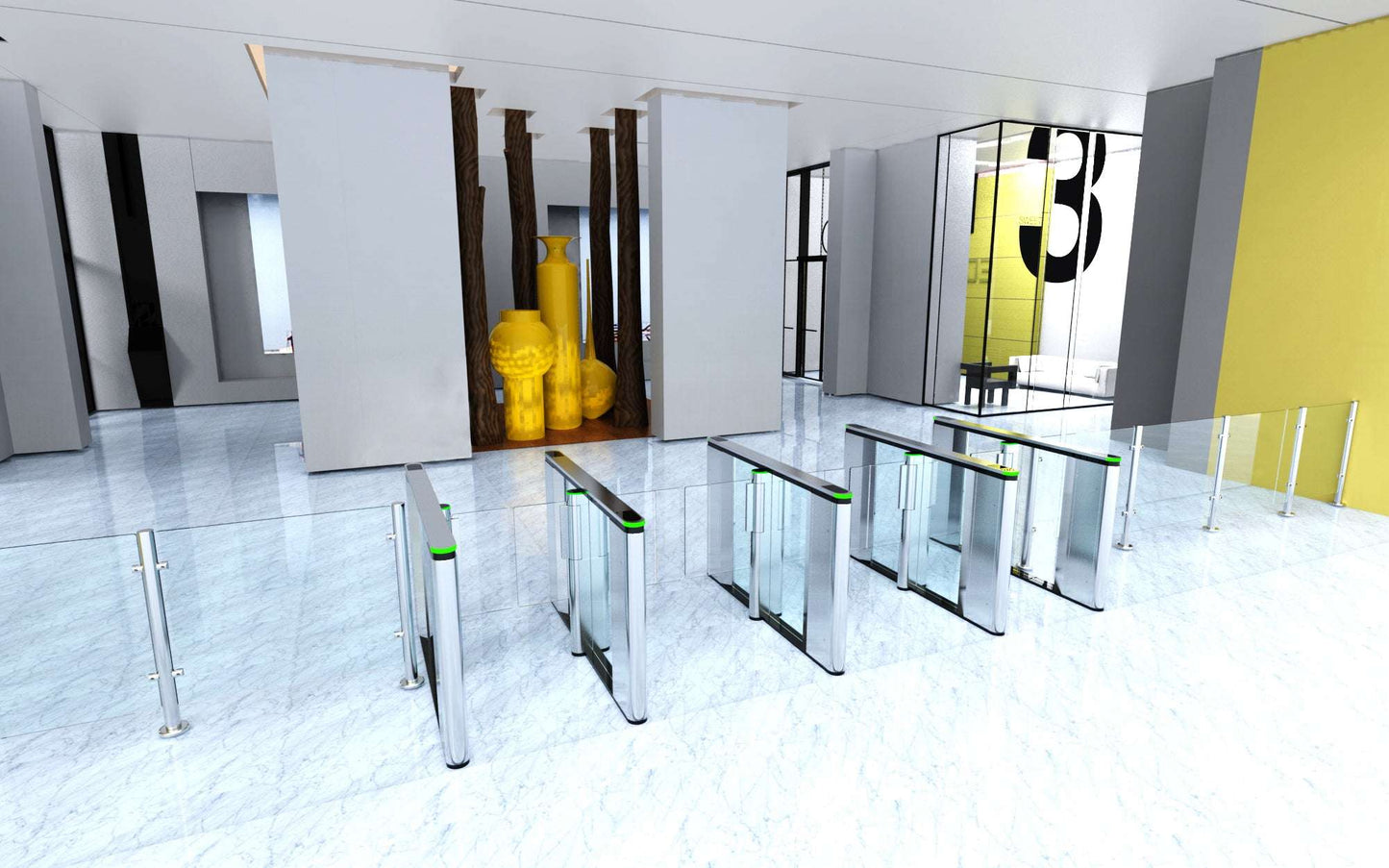

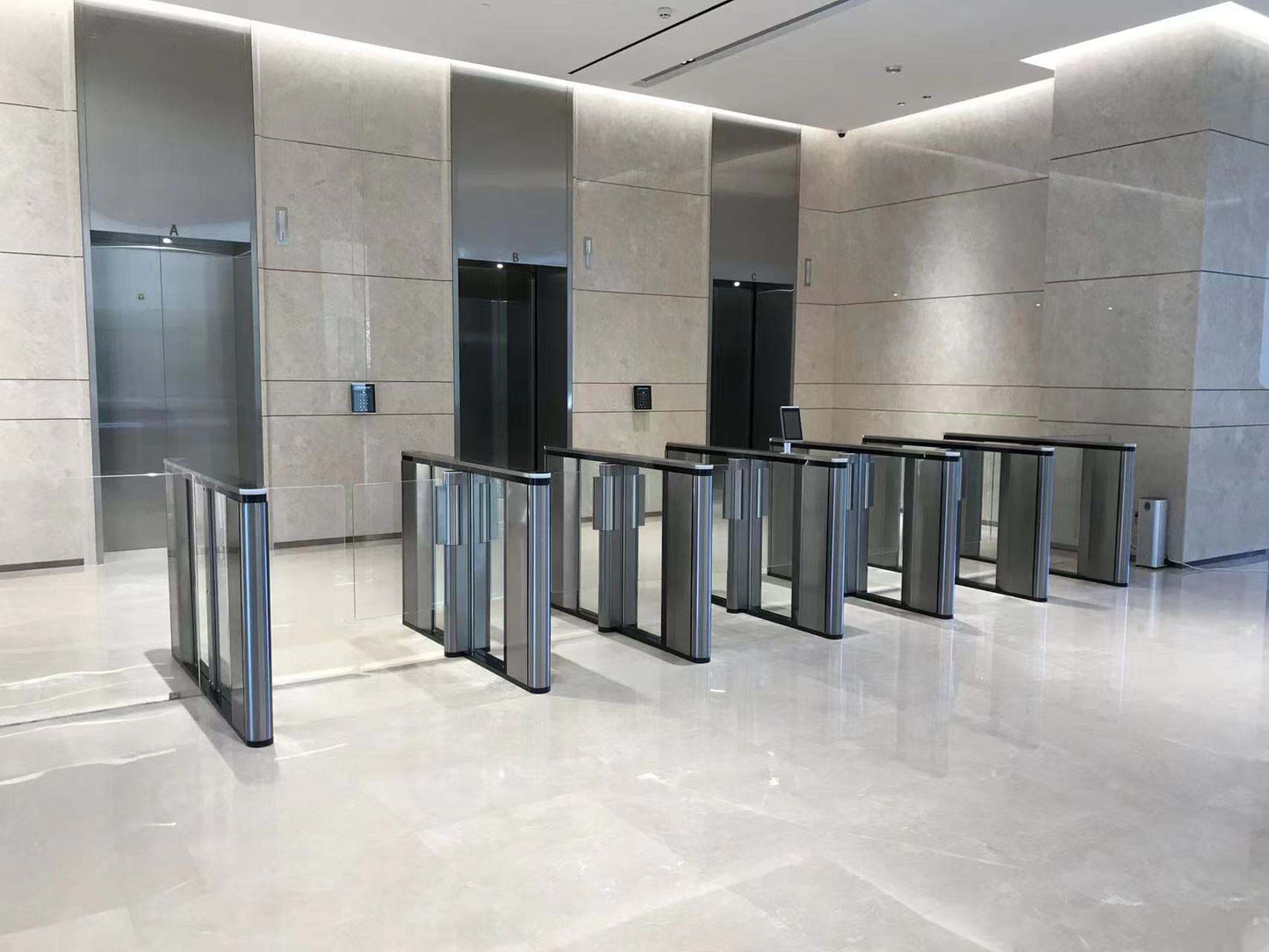

The PG500 Paddle Gate quick access door is designed for use inside building entrances and exits, combined with the latest face recognition technology, The PG500 is a much faster and secure way to get people into and out of your building. When installed with any access control system.

DATA SHEET DESCRIPTION STANDARD FEATURES

1. Cabinet frame: Steel frame with RoHS anti -corrosion zinc plating treatment.

2. Cabinet outer: Brushed AISI 304L stainless steel, 220g.

3. Detection photocells: 16 transmit reflect cells, 8 high level and 8 low level.

4. Main column: Containing the DC motor and gearbox, a geared electromagnetic brake for locking the obstacles in the event of forced entry.

5. Obstacle: Clear plexiglass, 900mm high, 10mm thick.

6. Open Commands: Normally open volt free contacts, closing for not more than 1 second.

7. Hold open: Normally open volt free contacts, closing for more than 3 second.

8. Fire Input: Normally open volt free contacts, closing for more than 3 second.

9. Outputs: Three transistor outputs, two for passage complete or counters and one for fraud alarms.
