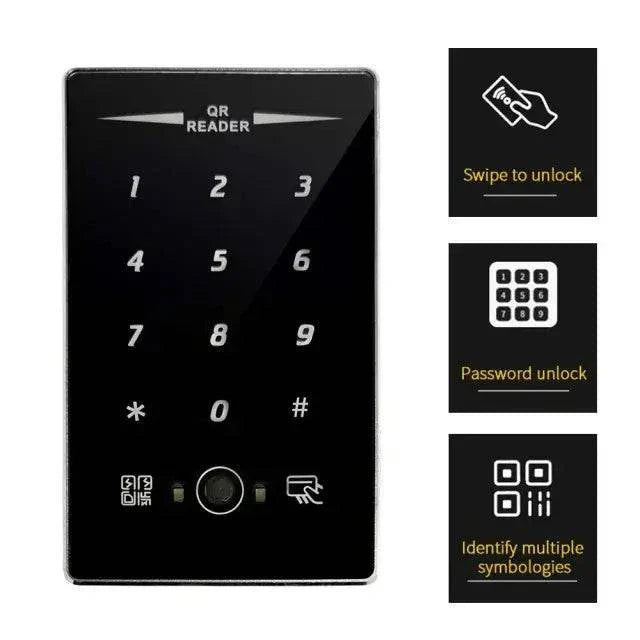

Evolve IP65 QR + Pin Reader

Evolve Anti Vandal QR Code and PIN Reader

• Card Type: EM Card/IC Card
• Barcode Type: QR, One-dimensional code

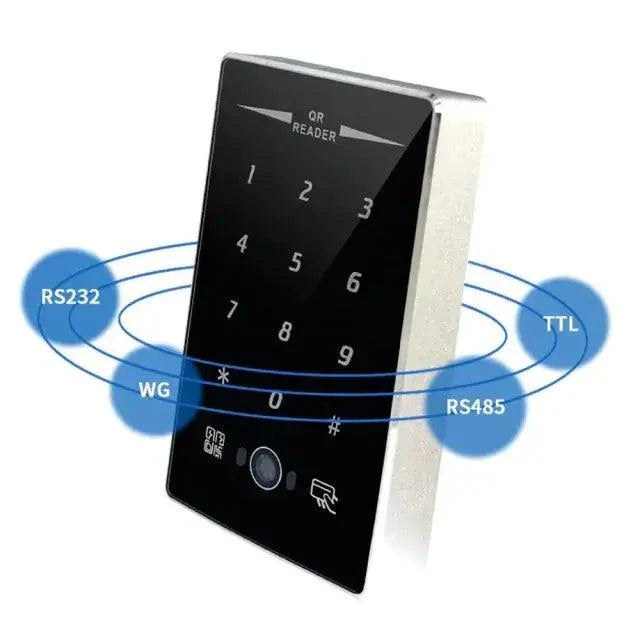

• Communication: Wiegand/RS232/RS485
• Decoding Mode: Image decoding
• Reading Direction (Barcode): 45° inclined plane with the lens
• Reading Feature: Auto-induction, beep hint
• Working Voltage: 5~15V
• Working Current: 800mA
• Reading Distance (Card): 3~6cm
• Reading Speed: <200ms
• Reading Distance (Barcode): 0~20cm
• Material: Tempered glass (code window)
• Working Humidity: 10%~90%
• Working Temperature: -20℃~70℃
• Operating System: Windows XP/7/8/10, Linux

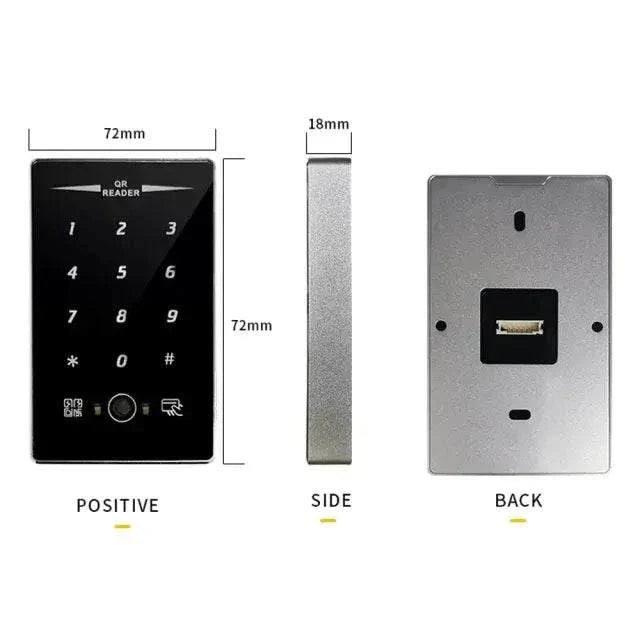

• Dimensions: 86868mm
• Indicating Light: Blue - working, Green - feedback
• Weight: 150g
• Remark: QR code format support includes code128, code39, EAN-8, EAN-128, EAN-13, QR Code, ISBN-13, Data Matrix, PDF417, UPC-A
