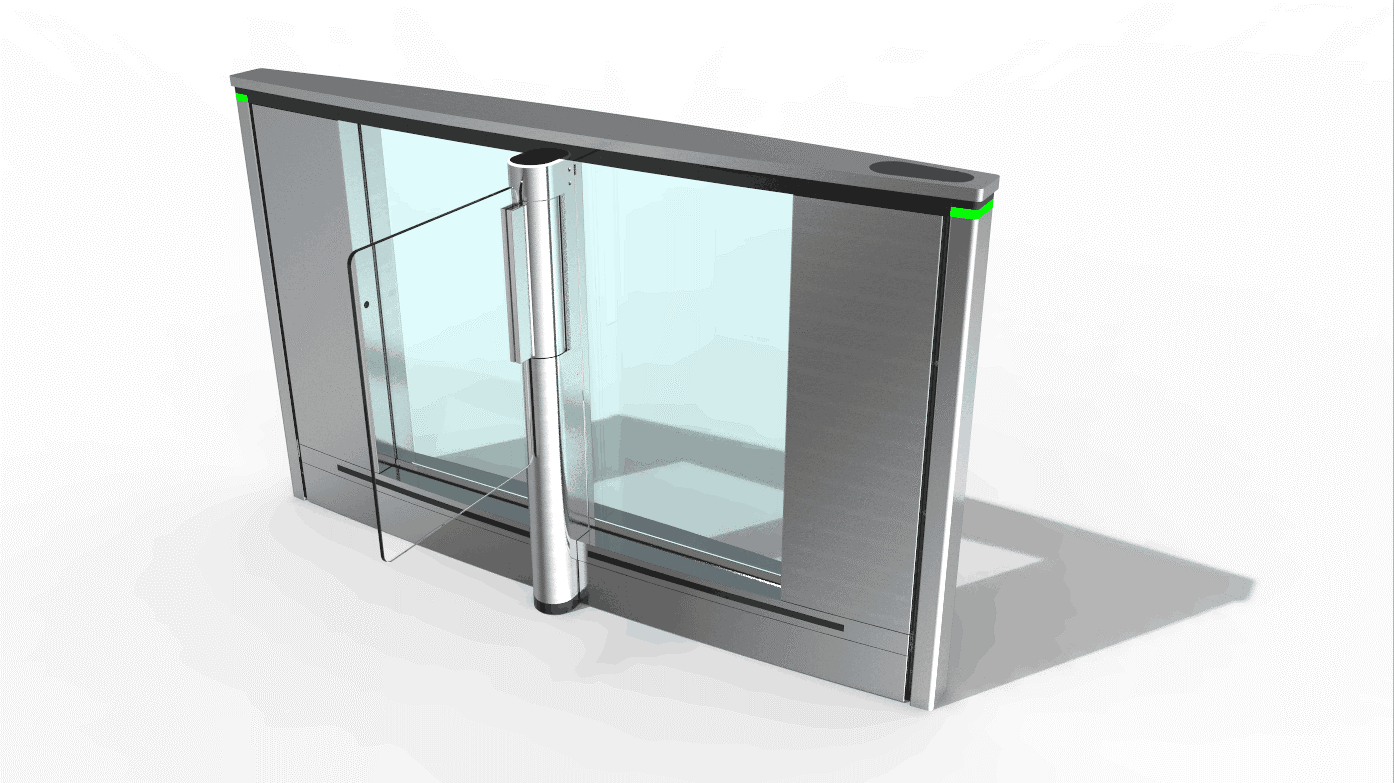

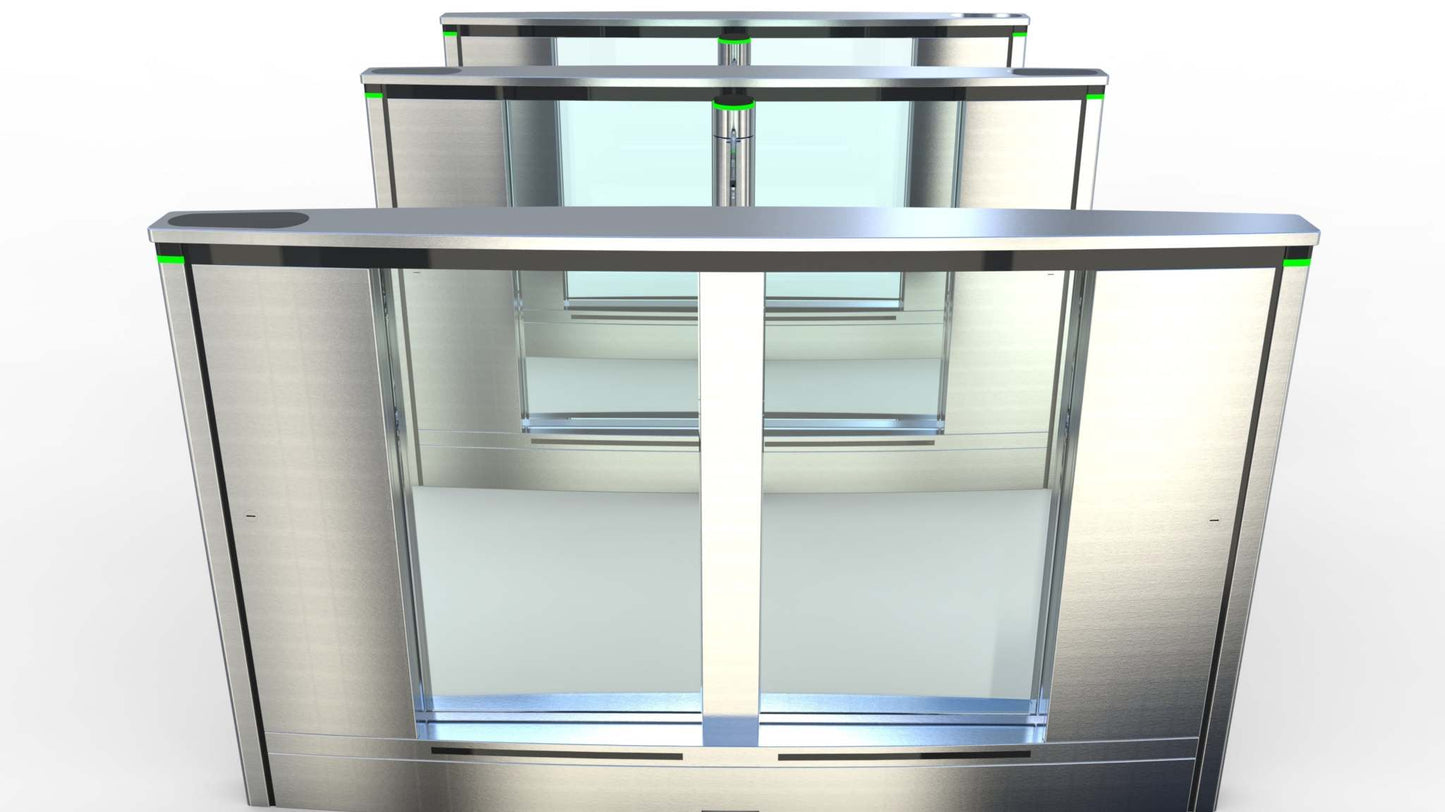

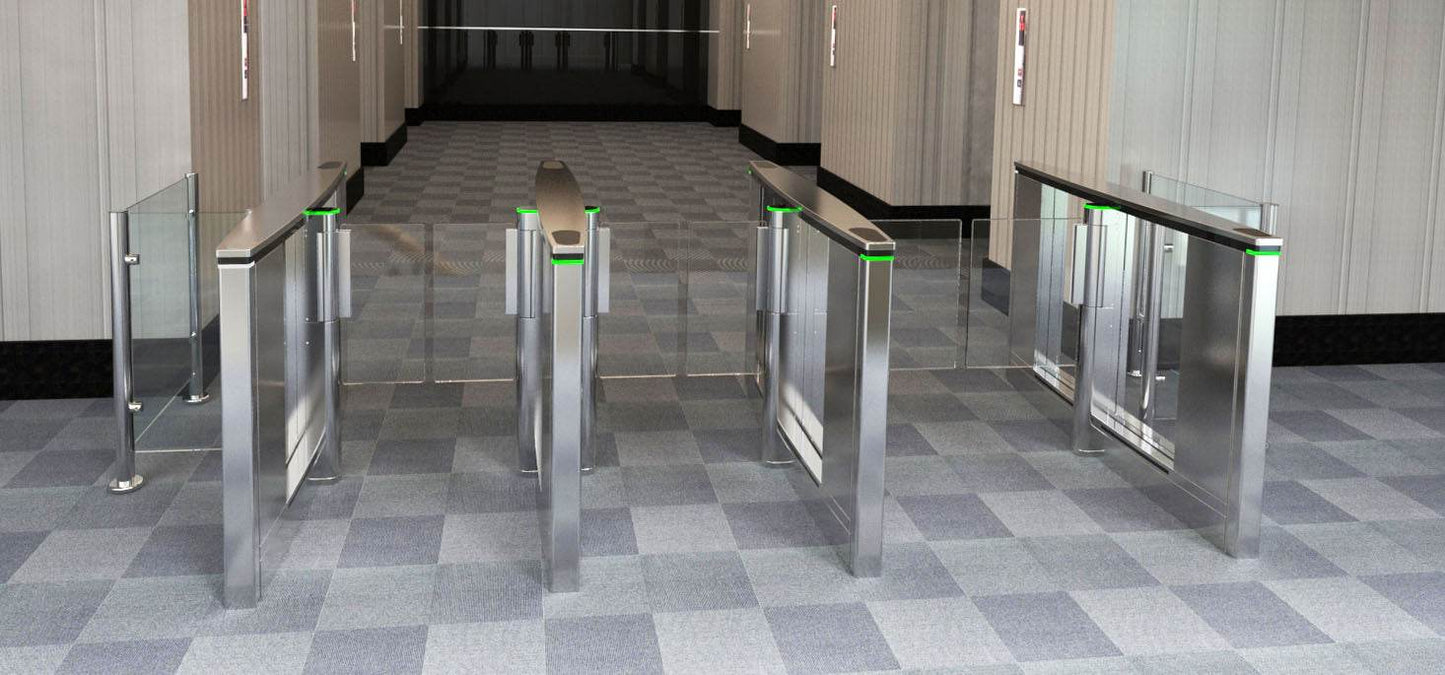

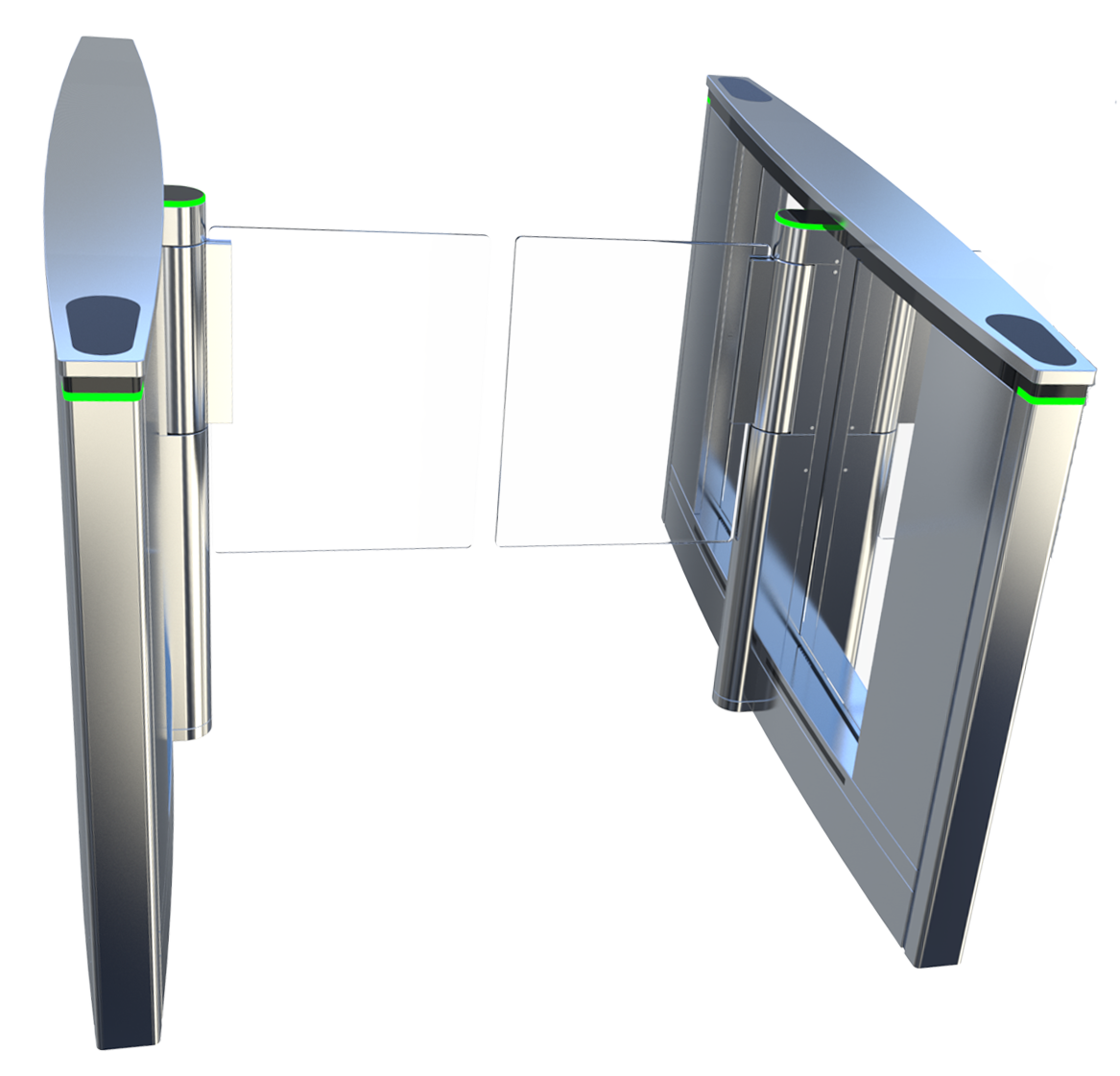

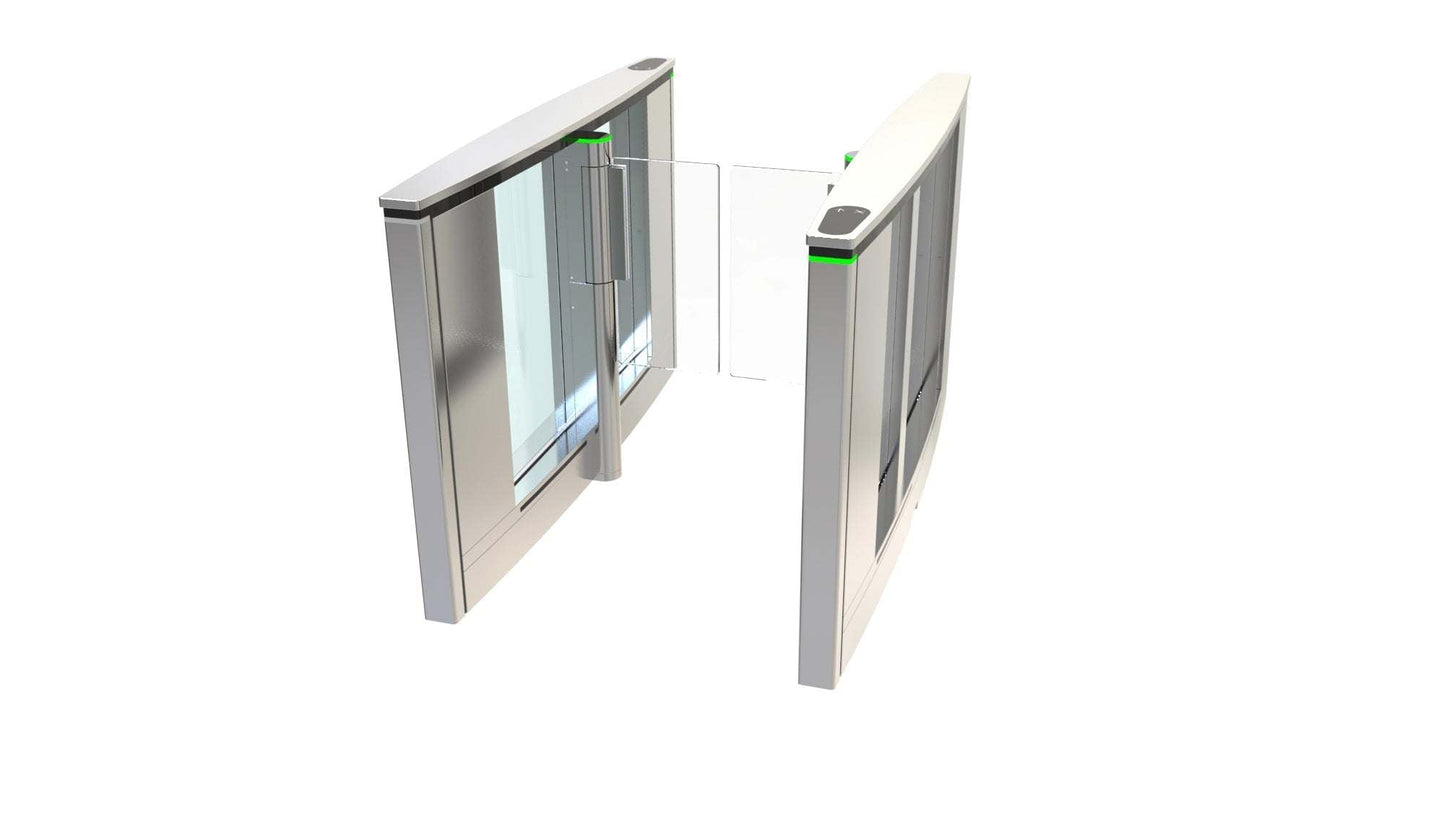

Evolve UK – PG300 Speed Gate (Paddle Gate)

The Evolve UK PG300 Speed Gate is a high-specification pedestrian entrance control system designed for secure, high-traffic commercial and public-sector environments. As part of our wider Speed Gates UK collection, the PG300 combines high-speed bi-directional throughput, advanced detection technology, and contemporary architectural design.

This model is ideal for modern reception areas, corporate headquarters, universities, transport hubs, and government facilities where controlled access and professional aesthetics are equally important. It also forms part of our broader Entrance Control Systems UK range, engineered for durability, reliability, and seamless integration.

Intelligent Control – 9 Operational Modes

The PG300 operates using our proven TD controller platform, enabling full setup and configuration directly from the speed gate itself — with no laptop, IP connection, or external PC required.

The system offers 9 selectable control modes, allowing flexibility across varying security levels:

• Controlled entry / free exit

• Controlled entry / controlled exit

• Free entry / controlled exit

• Locked mode (both directions)

• Hold-open mode

• Emergency open mode

• Timed single-direction release

• Anti-passback compatible modes

• Integration-triggered access modes

This makes the PG300 suitable for both medium-security receptions and higher-security internal zones.

Advanced Detection & Enhanced Security Options

Each lane includes:

• 8 upper infrared sensors

• 8 lower infrared sensors

An optional additional 2 infrared sensors at each end can be specified for enhanced detection performance in higher-risk environments.

Standard security functionality includes:

• Tailgating detection

• Anti-loitering alarms

• Wrong-direction alerts

• Crawling detection

• Optional integration with CCTV and electronic locking systems

For projects requiring perimeter-grade control, you may also consider our Full Height Turnstiles | Secure Pedestrian Access Control – Evolve Security Products (Speed Gates, Turnsiles) for external high-security installations.

Dimensions, Walkway Widths & Glass Heights

The PG300 is available in multiple configurations:

Clear walkway widths:

• 600mm

• 900mm

• 1120mm

Optional walkway plinths are available in 600mm, 900mm, and 1120mm formats.

Glass paddle heights:

• Standard: PMMA plexiglass paddles

• Optional: up to 1700mm height

Side panels are manufactured from 10mm toughened safety glass for strength and durability.

For lower-security internal zones, you may also explore our Tripod Turnstiles UK range.

Architectural Customisation Options

The PG300 can be tailored to suit corporate branding and architectural requirements:

• Glass manifestations

• Custom printed glass panels

• Application of bomb-resistant or bullet-resistant security film

• Optional higher-security glass configurations

• Electroplated cabinet finishes

• Bespoke cabinet colour matching

These options make the PG300 ideal for premium commercial interiors and flagship installations.

Safety & Fail-Safe Operation

The system includes:

• Integrated force limiters

• Fire alarm input with automatic fail-safe release

• Free movement during power failure

• Emergency stop compatibility

• Hold-open evacuation functionality

All models are designed to comply with UK DDA and US ADA accessibility requirements.

Open Protocol Integration

Like all Evolve systems, the PG300 is built on an open protocol architecture, allowing seamless integration with third-party access control platforms without restrictive service contracts or manufacturer lock-in.

To learn more about the benefits of open systems, visit our Open Protocol vs Closed Entrance Control Systems guide.

Ideal Applications

• Corporate offices

• Schools & universities

• Leisure centres & gyms

• Retail environments

• Airports & transport hubs

• Government & public sector facilities
